Màn hình DVD cho Hyundai Santafe - DVD Skaudio SK-8056G
Mã kho hàng : 114620
Trạng thái : call
Hãng sản xuất: SKAUDIO
Hình ảnh sắc nét
Nhiều tính năng.
Hãng sản xuất: Skaudio
Giá:
13.995.000 VND
| Số lượng |
|

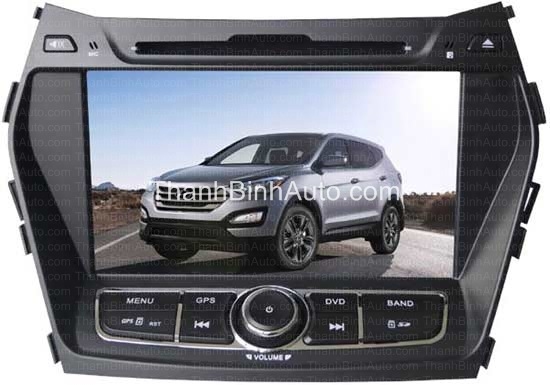

(0 đánh giá)Màn hình DVD cho HYUNDAI SANTAFE - DVD SKAUDIO SK-8056G
SK-8056G - Hyundai Santafe 2013 8 inch car dvd player with GPS
Bluetooth-Enabled,Built-in GPS,CD Player,MP3 / MP4 Players,Radio Tuner,Touch Screen,TV,RDS,IPOD
Specifications
8inch auto 2 din Car DVD player for Hyundai Santafe two din digital touch screen car Video, gps, Bluetooth, SD, 3G WCDMA
2 din 8 inch car dvd player for Hyundai Santafe with GPS
Main feature:
Two DIN DVD with fixed faceplate
8-inch HD digital color TFT touch screen, aspect ratio: 16:9, resolution: 800*480 pixels
Graphical User Interface
Languages: English, Russian, Italian, Portuguese, Spanish etc, and more menu languages can be customized
Special cable connector for the original car same style with the car
DVD/MPEG4/DivX 5.0/Xvid/AVI/SVCD/VCD/CD/MP3/WMA/JPEG/CD-R/CD-RW/DVD-R/DVD-RW Support
Video and audio output, and rear monitor video rearview mirror both available
Dual zone function: drive can listen to music while viewing the map
Built-in GPS navigation function, voice guide, route plan, advanced POI Management
Built-in Bluetooth, support handsfree, dial-up and incoming call automatic mute, A2DP, Phone book function
SD/MMC card slot with maximum 16G compatibility
iPod Connectivity (Available for iPod NANO, Shuffle 3 etc)
Multi-function IR remote control operation
Preset EQ function, bass/treble/fader/balance controls
Built-in AM/FM Radio, RDS for optional
Auto Store Pre-set Scan
Digital TV(DVB-T) or Analog TV, PAL/NTSC (optional)
With steering wheel control function
Real time Clock display
USB port and can support direct control
Parking Rear view camera input
Buit-in hi-fi amplifier, 4*45 W max power output
Interface: IPOD, USB, SD slot, A/V input, A/V output
Electronic and mechanical anti-shock system
System parameters:
Working voltage DC 10.8V-14V
Working current MAX 15A
Standby current ≤10mA
Video system Automatic PAL or NTSC
Screen:
Screen Size: 7 Inch Digital Screen
Resolution: 800*480
Touch Screen Function
Image Brightness/Contrast/Color/Saturation adjustable
Amplifier parameters:
Testing voltage 13.8V
Maximum power output: 4×45W
Speaker impedance 8Ω (4-8Ωacceptable)
Input & Output:
1*Radio Antenna Input
1*TV Antenna Input
1*IPOD Input
RCA Video Output*2/Back Sight Video Input (Camera)/AUX Video Input
RCA Audio FR/FL/RR/RL output*2 and AUX Audio R/L Input
Radio:
FM Frequency: 87.5-108MHz (Europe), Increment: 0.05MHz
AM Frequency: 522-1620KHz, Increment: 9 KHz
In Radio mode, can select Europe/USA/Japan/Russia radio frequency
Tune method PLL (Phase Locked Loop) frequency complex tune
Storage quantity FM radio: 18 channels, AM radio: 12 channels
Search method Automatic/manual
Built-In RDS Radio Receiver Function (Optional)
DVD Player:
Video output level: Compound1.0+0.2Vp-p (75Ω)
Compatible discs: DVD/MPEG4/DivX 5.0/AVI/VCD/CD/MP3/WMA/JPEG/CD-R/CD-RW/DVD-R/RW
Disc spec: Diameter 12cm disc
DVD OSD Language: English/German/Spanish/French/Portuguese etc
Audio/Subtitle/Menu Language: English/Japanese/French/Spanish/Russian/German/Italian
GPS Navigation System:
Operation system: WINCE 5.0 CORE
Support map: Horizon, COSMIC, IGO, Route66 etc.
CPU Processor: SAMSUNG ARM9 S3C2416XH-40,Main Frequency: 400MHz
EMS Memory: 128MB DDRII SDRAM
Storage device: 128/256MB NAND Flash
Display output: CVBS, RGB, YPbPr output. (Resolution: 800 (RGB)*480pixes)
GPS Chipset: ATHEROS-AR1511,Frequency: 1.575GHZ,Channel number: 12 channels
Navigation path: StorageCard, NumberPort=COM2, BaudRote=9600
Hot start time: Average 3s,Warm Start time: Average 38s,Cold start time: Average 45s
Bluetooth:
Built-in Microphone in the control panel
Support Bluetooth Music Play Function
(Attention: This function can be only used with the mobile phone which supports the Bluetooth Audio Output)
Support Bluetooth Phone book Function
IPOD:
Support iPod Input (when iPod is connected, it can be charged)
Support iPod Model: iPod CLASSIC/ iPod NANO/ iPod TOUCH/IPHONE
(Notice: It doesn't support IPHONE 3G/IPHONE 3GS)
USB/SD:
Built-In USB Port, SD/MMC Card Slot
USB Port: Can support USB flash device or MP3 player with maximum 16G compatibility, Can't support portable hard disk
SD Card Port: Can support SDHC Card of maximum 16G compatibility
TV:
Built-In Analog Television or DVB-T Digital TV, ISDB-T TV (Optional)
Analog Television:
Input Frequency range: 48.25MHz-863.25MHz
True-synchronous vision IF demodulator (PLL)
Demodulated video output, AF sound output
DVB-T:
Fully DVB-T/ SD MPEG-2 compliant, FTA model
Input Frequency Range: 174 MHz -858MHz
TV system: PAL/NTSC/SECAM auto-conversion
Input impedance: 75Ω
